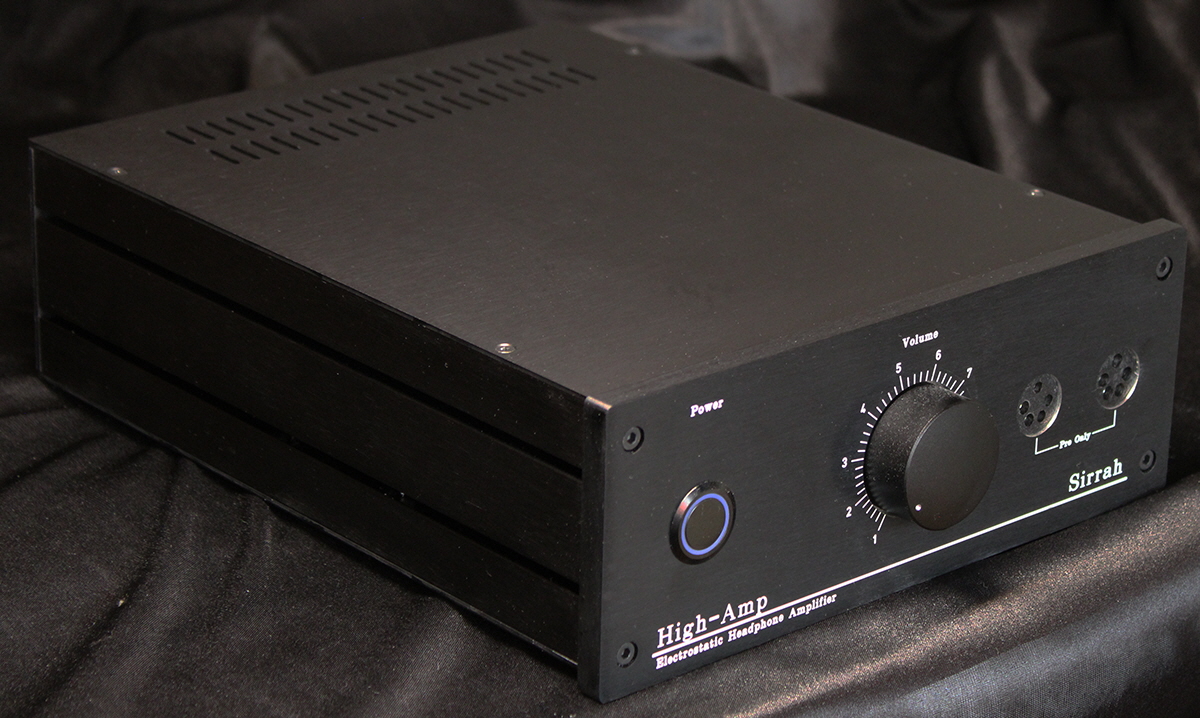

Sirrah V3.0
Eigenschaften:
- voll symmetrisch aufgebauter Gleichstrom-Verstärker mit stabilisierten Linear Netzteil
- Eingangsbereich mit extrem rauscharmen JFETs ausgestattet
- Hochfrequenz störstrahlungsentkoppelt durch Verwendung von versilberten Glimmerkondensatoren
- Vishay Elkos im Netzteil
- Zinnfolienkondensatoren von Mundorf im Netzteil für optimale Auflösung und Räumlichkeit
- Überdimensionierter Trafo für einen kräftigen strukturierten Tiefbass
- Alle Signalleitungen sauerstofffreies Kupferkabel von Neotech

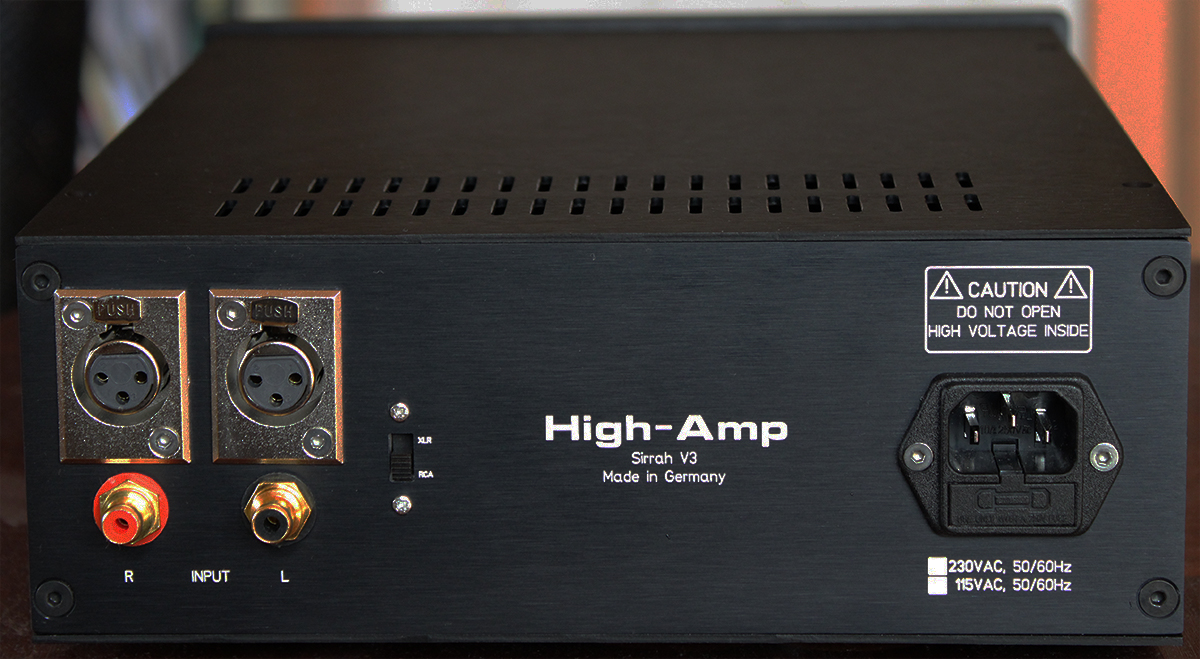

- Wahlweise XLR Eingang und RCA Eingang
- 2 x 5 poliger Kopfhörerausgang mit Bias Spannung 580V DC
Technische Daten:
- Frequenzgang: 0-60000 Hz
- Verstärkungsfaktor: 57 dB (x700)
- Klirrfaktor bei 100 Vrms, 1 KHz: < 0,01 % THD
- Eingangsimpedanz: 10 KOhm
- Maximale Ausgangsspannung: 250 Vrms bei 1 KHz und 1 % THD (Stax SR-007: 109 dB, Stax SR-L700/SR-009: 110 dB)
- Biasspannung: 580V (nutzbar für Stax Pro und MrSpeakers Kopfhörer)
- Netzspannung (AC): 230 V / 50-60 Hz
- Betriebsbedingungen: 0-30°C
- Gewicht: 3,5 Kg
- Maße BxHxT: 240x95x245 mm
- Leistungsaufnahme: 30W
Passt zu allen Pro-BIAS Hörern. Der SR4070 hat einen schlechteren Wirkungsgrad. Hier würde ich einen Verstärker mit mehr Ausgangsspannung empfehlen.
Preis: 700 Euro incl. 2 Jahre Garantie, 14 Tage Rückgaberecht
characteristics:
- fully symmetrical DC amplifier with stabilized linear power supply
- input section equipped with extremely low-noise JFETs
- high-frequency interference radiation decoupled by using silver-plated mica capacitors
- vishay electrolytic capacitors in the power supply
- tin foil capacitors in the power supply for optimal resolution and spatiality
- oversized transformer for a powerful structured deep bass
- Aall signal wiring is Neotech oxygen-free copper wire
- both XLR input and RCA input
- 2 x 5-pin headphone connector for 580V bias voltage
technical specifications:
- frequency Response: 0-60000Hz
- gain: 57dB (x700)
- distortion at 100Vrms, 1KHz: <0.01% THD
- input impedance: 10 KOhm
- maximum output voltage: 250 Vrms at 1 KHz and 1% THD (Stax SR-007: 109 dB, Stax SR-L700/SR-009: 110 dB)
- bias voltage: 580V (usable for Stax Pro and MrSpeakers headphones)
- mains voltage (AC): 230 V / 50-60 Hz
- operating conditions: 0-30°C
- weight: 3.5 kg
- dimensions WxHxD: 240x95x245 mm
- power consumption: 30W
fits all Pro-BIAS headphones. The SR4070 has a worse efficiency. Here I would recommend an amplifier with more output voltage.
price: 700 euro including 2-year guarantee, 14-day right of return
|
