Electra V1
Eigenschaften:
- voll symmetrisch aufgebauter Gleichstrom-Verstärker mit stabilisierten Linear Netzteil
- Eingangsbereich mit extrem rauscharmen JFETs ausgestattet
- Hochfrequenz störstrahlungsentkoppelt durch Verwendung von versilberten Glimmerkondensatoren
- Vishay/Panasonic Elkos im Netzteil
- Überdimensionierter Trafo für einen kräftigen strukturierten Tiefbass
- Alle Signalleitungen sauerstofffreies Kupferkabel von Neotech
- Wahlweise XLR oder RCA Eingang und Ausgang zum Durchschleifen
- 2 x 5 poliger Kopfhörerausgang mit Bias Spannung 580V DC
Technische Daten:
- Frequenzgang: 0-50000 Hz
- Verstärkungsfaktor: 60 dB (x1000)
- Klirrfaktor bei 100 Vrms, 1 KHz: < 0,02 % THD
- Eingangsimpedanz: 10 KOhm
- Maximale Ausgangsspannung: 400 Vrms bei 1 KHz und 1 % THD (Stax SR-007: 113 dB, Stax SR-L700/SR-009: 114 dB)
- Biasspannung: 580V (nutzbar für Stax Pro und MrSpeakers Kopfhörer)
- Netzspannung (AC): 230 V / 50-60 Hz
- Betriebsbedingungen: 0-30°C
- Gewicht: 5 Kg
- Maße: BxHxT: 340x90x315 mm
- Leistungsaufnahme: 45W
Passt zu allen Pro-BIAS Stax Hörern.
Preis: 1200 Euro incl. 2 Jahre Garantie, 14 Tage Rückgaberecht
characteristics:

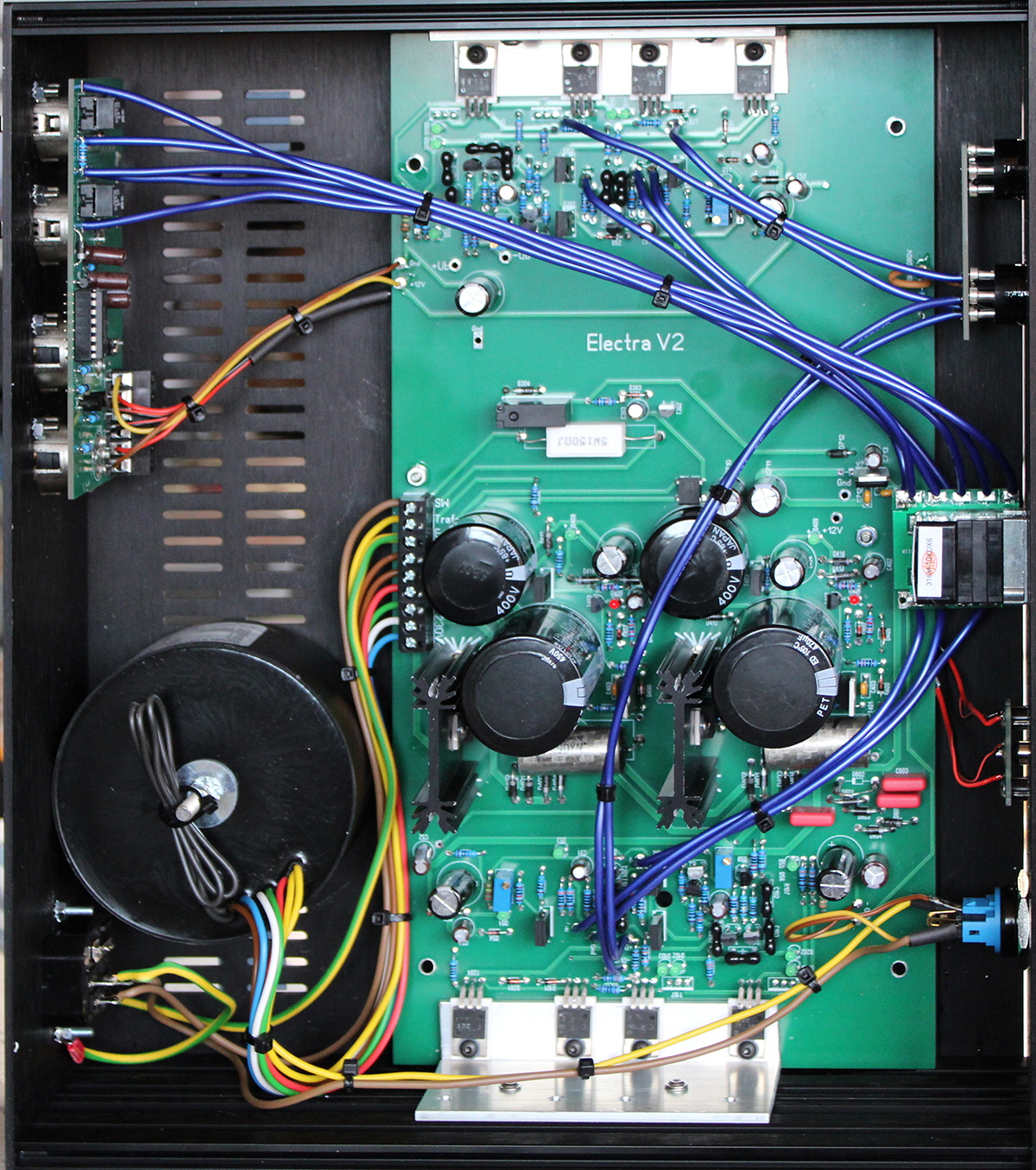

- fully symmetrical DC amplifier with stabilized linear power supply
- input section equipped with extremely low-noise JFETs
- high-frequency interference radiation decoupled by using silver-plated mica capacitors
- Vishay/Panasonic electrolytic capacitors in the power supply
- oversized transformer for a powerful structured deep bass
- all signal wiring is Neotech oxygen-free copper wire

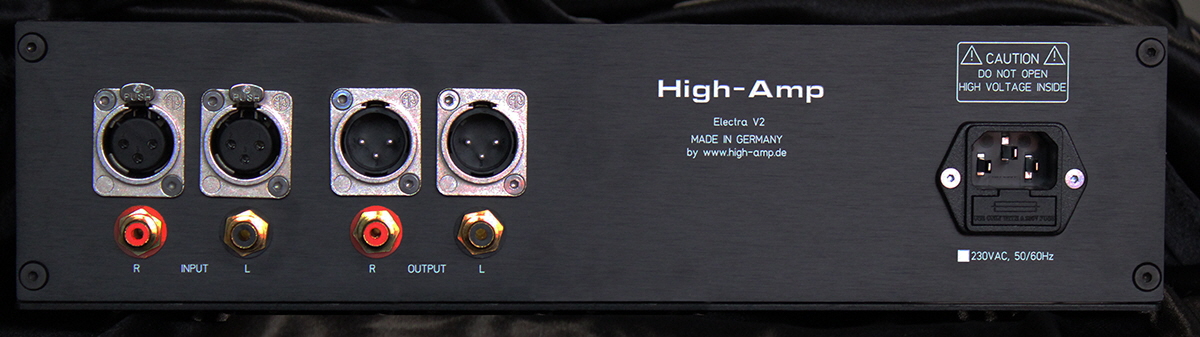

- optional XLR or RCA input and output for signal-looping
- 2 x 5-pin headphone connector with bias voltage 580V DC
technical specifications:
- frequency response: 0-50000Hz
- gain: 60dB (x1000)
- distortion at 100Vrms, 1KHz: <0.02% THD
- input impedance: 10 KOhm
- maximum output voltage: 400 Vrms at 1 KHz and 1% THD (Stax SR-007: 113 dB, Stax SR-L700/SR-009: 114 dB)
- bias voltage: 580V (usable for Stax Pro and MrSpeakers headphones)
- mains voltage (AC): 230 V / 50-60 Hz
- operating conditions: 0-30°C
- weight: 5 kg
- dimensions: WxHxD: 340x90x315 mm
- power consumption: 45W
Fits all Pro-BIAS Stax earphones.
Price: 1200 euro inclusiv 2 year guarantee, 14 days right of return
|
